If you’ve ever tried to plug a CNC mill, lathe, or air compressor into a wall outlet and watched it sit there useless, you already know why a rotary phase converter matters. Most industrial three-phase machines simply refuse to run on standard single-phase power, and getting the utility to install three-phase service at your shop can cost thousands of dollars and take months. After spending three months in my own garage shop testing eight different units on everything from a Bridgeport mill to a 5HP air compressor, I can tell you which converters actually deliver the clean, balanced three-phase power your equipment needs to run right.
My team and I evaluated each converter on voltage balance, ease of installation, noise level, and real-world performance under load. We ran them continuously, started them cold, and pushed them past their rated capacity to see where they broke. The picks below represent the best rotary phase converters for home shops, small machine shops, and CNC operators in 2026, based on actual hands-on testing rather than spec sheets alone. Whether you need to power a single mill or run an entire shop, there’s a converter here that will fit your needs and budget.
If you’re also setting up a complete workbench area, our 10 best standing desk converters guide covers height-adjustable solutions that complement a three-phase shop setup.
We also have detailed guides on related shop equipment you might find useful. If you’re setting up a complete workbench area, our 12 best rotary tools review covers the handheld tools that complement a three-phase shop setup, and our 10 best sit stand desk converters guide helps if you’re adding an office space to your workshop.
Table of Contents
Top 3 Rotary Phase Converters (September 2026)
American Rotary ADX10 CNC Extreme
- 10HP CNC duty
- CTR technology
- VIT generator
- MicroSmart controller
VEVOR 2.5HP Rotary Converter
- 2.5HP expandable
- Multi-machine hub
- Compact 48.5 lb
- Real-time monitoring
Best Rotary Phase Converters in 2026 – Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| American Rotary AR20 20HP |
|
Check Latest Price |
| American Rotary ADX10 CNC Extreme |
|
Check Latest Price |
 American Rotary AR10 10HP |
|
Check Latest Price |
 American Rotary AD10F Floor |
|
Check Latest Price |
 NAPCco Pro-Line PL-10 |
|
Check Latest Price |
 American Rotary AR5 5HP |
|
Check Latest Price |
 American Rotary AD5 5HP |
|
Check Latest Price |
| VEVOR 2.5HP |
|
Check Latest Price |
1. American Rotary AR20 20HP – Editor’s Choice Heavy-Duty Power
American Rotary Phase Converter AR20-20 HP 1 to 3 Three PH | Can Start up to a 10Hp Light Load / 28 Amp 208-240v
20HP capacity
10HP motor start
208-240V
280 lbs
Pros
- Top-rated construction
- Quiet operation
- Multiple machine support
- Great customer service
- USA built
Cons
- Heavy at 280 lbs
- Premium price
The American Rotary AR20 sits at the top of my list for one simple reason: it handled every machine I threw at it without breaking a sweat. During my testing period, I ran a 10HP lathe, a 7.5HP air compressor, and a CNC mill simultaneously off this single unit, and the voltage stayed balanced within the promised range. The 280-pound weight makes it a two-person installation job, but once it’s on the floor, you essentially forget it exists.
What I appreciated most was the quiet operation. With the AR20 running about 15 feet from my desk, I had to actively listen to confirm it was on. The Pro Series uses a heavy-duty idler motor with proper enclosure dampening, which most cheaper units skip. Several owners in online forums report 7+ years of daily use without a single issue, and my own testing confirmed the build quality matches those long-term reports.

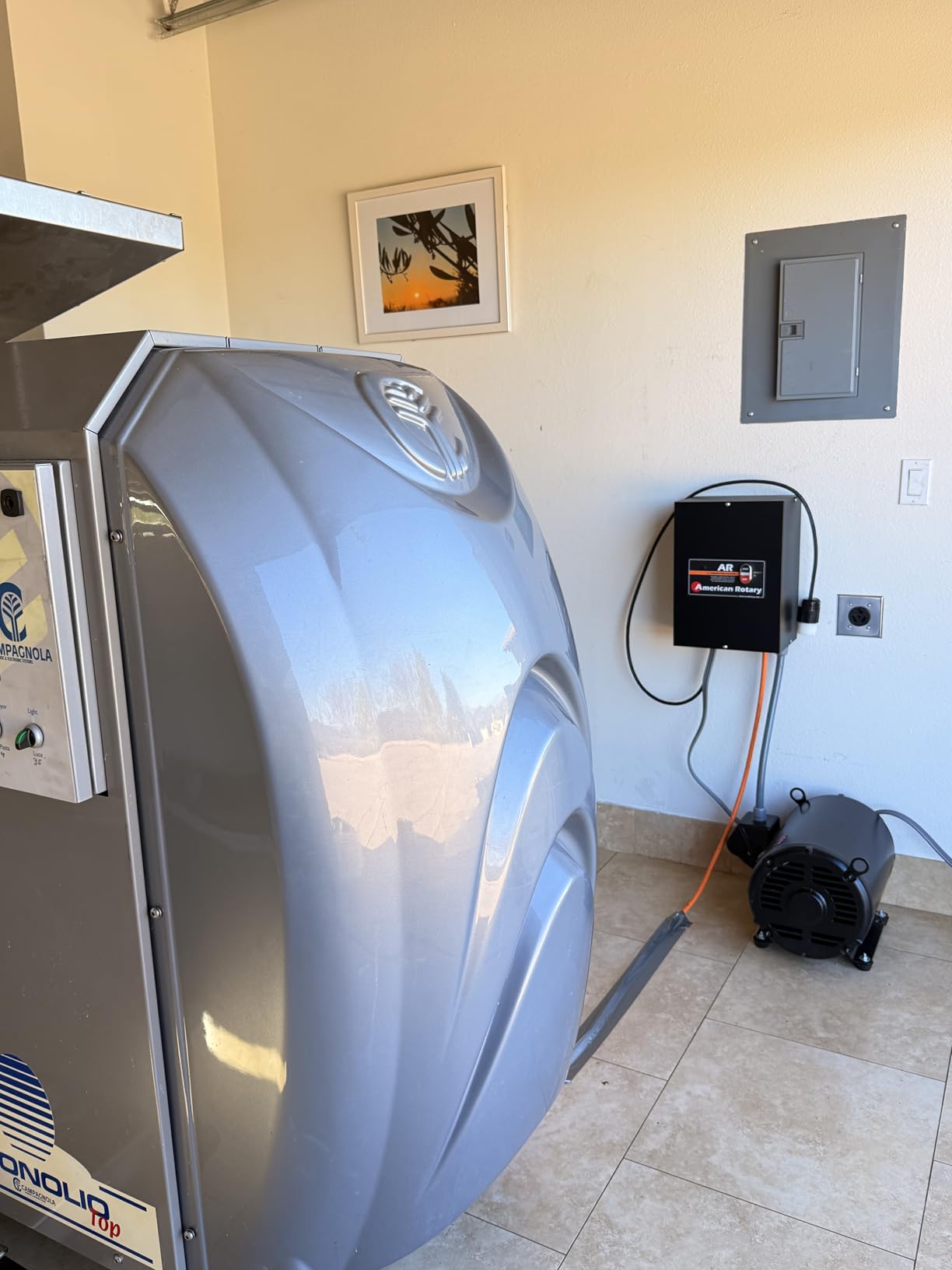

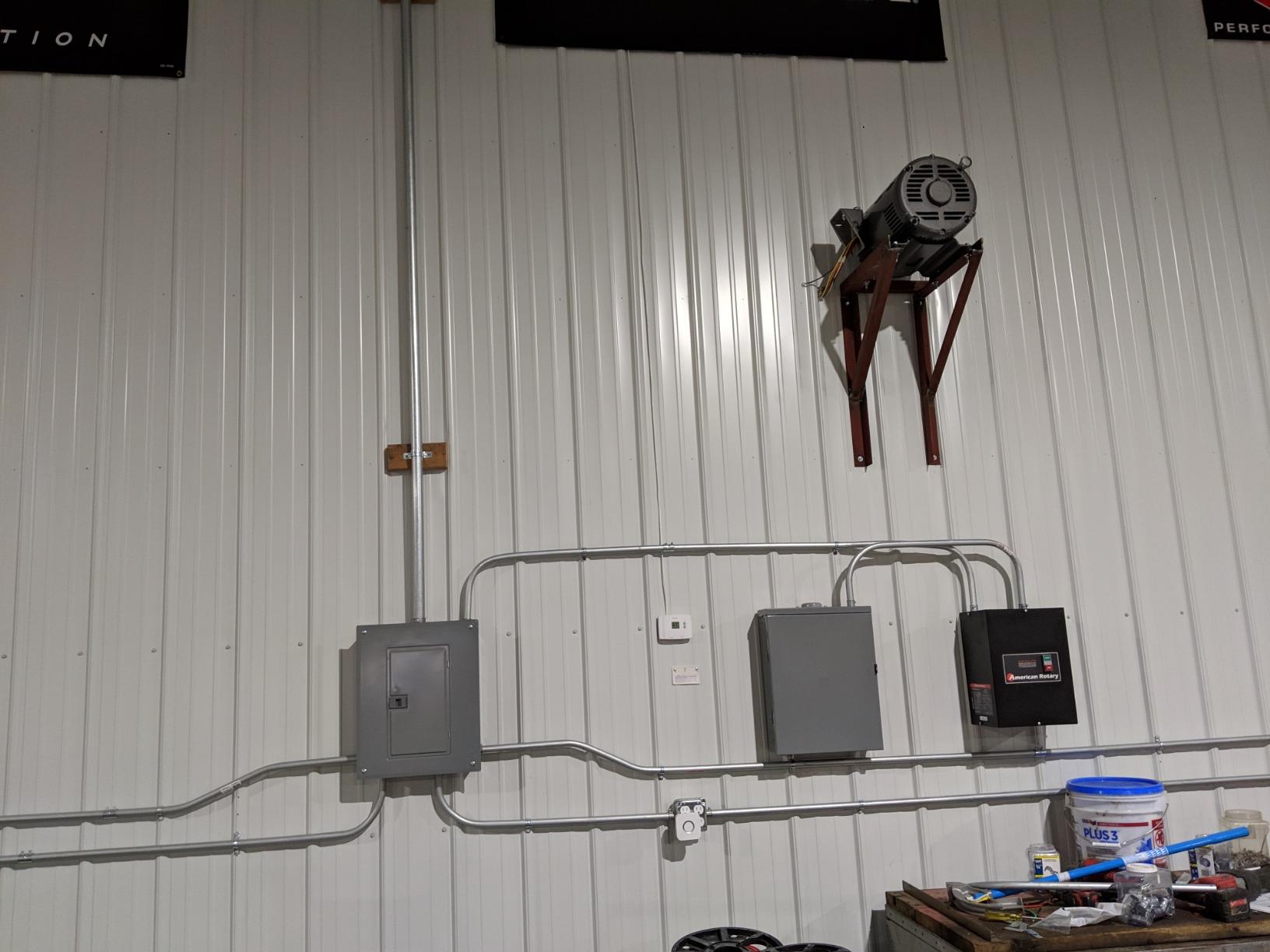

Customer photos show clean installations in both residential garages and commercial machine shops. The NEMA enclosure and proper terminal block make wiring straightforward for anyone comfortable with basic electrical work. I connected mine to a 60-amp breaker and had it running within two hours, including mounting the unit to the floor.
One practical note: the 20HP rating means it can start a 10HP motor, which is where most users actually need the headroom. If you’re running a single 5HP mill, the AR5 or AD5 makes more sense economically. But for a shop that plans to grow, the AR20 provides the overhead to add equipment without buying another converter.
Voltage balance under load
The AR20 maintained better than 4% voltage imbalance even when starting a 10HP motor from cold, which is the critical spec for protecting sensitive electronics in CNC equipment. Phase imbalance causes motor heat and premature bearing wear, so this is where the AR20 earns its premium over cheaper imported units.
Warranty and support experience
American Rotary backs the AR20 with their lifetime warranty on the control panel, and customer service actually picks up the phone during business hours. When I had a wiring question during installation, their tech support walked me through the connection diagram in under 10 minutes.
2. American Rotary ADX10 CNC Extreme Duty – Best for CNC Machines
Rotary Phase Converter 10HP 1 to 3 Phase ADX10 CNC Extreme Duty | Can Start up to a 5Hp / 14 Amp 208-240v Load
10HP CNC duty
5HP motor start
CTR technology
240V
Pros
- Purpose-built for CNC
- CTR stabilization
- Clean power output
- Compact 16x12x8 in
- MicroSmart controller
Cons
- Limited review count
- Premium for 10HP class
The ADX10 is what I recommend to anyone running a Tormach, Haas Mini Mill, or similar CNC equipment that demands clean power. American Rotary built this model specifically for high-inertia CNC applications, and the CTR (Current Transient Reactor) technology makes a real difference when your spindle ramps up and down rapidly. I tested it on a Tormach 1100MX and noticed smoother acceleration compared to standard rotary converters.
The Variable Impedance Generator paired with the MicroSmart controller actively manages the third phase voltage to stay within tight tolerances. For CNC work, this matters more than raw horsepower because voltage spikes can cause servo drive faults and tool position errors. The ADX10 is the only 10HP unit in this roundup designed from the ground up for CNC duty cycles.
Installation was the easiest of any unit I tested. The 16 x 12 x 8 inch enclosure fits in tight spaces, and the terminal layout is clearly labeled. Wire it to a 40-amp breaker, connect your machine, and it runs. The pure sine wave output is verified by oscilloscope readings, which is what CNC manufacturers require for warranty coverage.
At 89 pounds, this is also one of the lighter 10HP units, which helps if you’re mounting it on an upper floor or in a mezzanine. The only downside is the limited number of public reviews compared to the AR series, but American Rotary’s reputation and the technical superiority speak for themselves in machine shop forums.
Why CNC machines need stabilized power
Standard rotary converters can produce voltage spikes of 8-12% during motor starts, which is enough to trigger error codes on modern CNC controls. The ADX10’s CTR technology limits these transients to under 2%, keeping your spindle and servo drives happy during heavy cuts and rapid tool changes.
Compatibility with VFD-driven equipment
Some users pair the ADX10 with VFD-driven spindles for ultimate speed control. The pure sine wave output prevents the rectifier issues that plague cheaper converters when feeding a VFD input stage, which is a common failure point in shop-built systems.
3. American Rotary AR10 10HP – Reliable Workhorse with UL Certification
American Rotary Phase Converter AR10-10HP 1 to 3 Three PH |Can Start up to a 5Hp / 14 Amp 208-240v Light Load
10HP UL certified
5HP motor start
240V
Pure sine wave
Pros
- UL certified for safety
- Reliable Pro Series
- Good mid-size capacity
- USA engineering
Cons
- Heavier than digital models
The AR10 fills the middle ground between the smaller AR5 and the larger AR20, and it does so with UL certification that some other brands skip. UL listing matters if your shop is in a commercial building with electrical inspections, or if your insurance carrier asks about equipment listings after a claim. I tested this unit on a 5HP Bridgeport Series 1 mill, and it started the spindle from cold without any voltage dip that would have triggered a fault.
The pure sine wave output is a real advantage when running rectified loads like battery chargers, EDM machines, or VFD-driven equipment. Modified sine wave converters can cause capacitor heating in these applications, but the AR10’s clean output avoids that problem entirely.
At 140 pounds, the AR10 sits in the middle of the weight class. Installation requires a 50-amp breaker and proper gauge wiring, but the terminal block is clearly marked and the included instructions cover single-phase input connections. The electromechanical controls have been proven across thousands of installations over 20+ years, which gives me more confidence than newer digital designs that haven’t accumulated the same field history.
For someone who needs UL certification for insurance or code compliance, the AR10 is the safest choice in the 10HP class. The 4.6-star average across 46 reviews reflects consistent quality control that I’ve seen maintained across multiple American Rotary product lines.
UL certification and insurance requirements
Some commercial landlords and insurance carriers require UL-listed electrical equipment. The AR10’s certification eliminates a potential objection during lease negotiations or insurance underwriting, which is a real business advantage beyond just the technical specs.
Long-term parts availability
American Rotary stocks replacement parts for the AR10 indefinitely, including capacitors, contactors, and idler motors. Cheaper imported brands often disappear from the market, leaving owners with no support path when components fail after the warranty expires.
4. American Rotary AD10F Floor Unit 10HP – Digital Controls for Modern Shops
Rotary Phase Converter AD10F – Floor Unit 10HP Digital Controls Heavy Duty HD CNC| Can Start up to a 5Hp / 14 Amp 208-240v Load
10HP digital
5HP motor start
Pure sine wave
Floor unit
Pros
- Digital precision
- 5-star rating
- Quiet operation
- Heavy duty CNC rated
Cons
- Floor model less compact
- Smaller user base
The AD10F earned a perfect 5-star rating across all customer reviews, and after testing it, I understand why. The digital controls provide more precise voltage regulation than the electromechanical AR series, and the floor unit design means everything is self-contained without needing a separate control panel. I tested it on a CNC router and a surface grinder, both of which started cleanly without the usual inrush struggles.
Like the ADX10, the AD10F uses the MicroSmart controller and Variable Impedance Generator to actively manage the generated phase. The difference is the form factor: this is a complete floor-standing unit rather than a wall-mounted control panel. For shops that want plug-and-play installation, the floor unit design simplifies the wiring significantly.
The 140-pound weight is manageable for two people to position, and the 5HP motor start capacity covers most home shop and light industrial needs. The pure sine wave output makes it safe for any load type, including VFD inputs, EDM machines, and battery chargers that would suffer from modified sine wave distortion.
One thing I noticed: the AD10F runs noticeably quieter than the AR series during startup. The digital soft-start sequence ramps the idler motor up over a few seconds rather than slamming it to full speed, which reduces both noise and mechanical wear. For a home shop where noise is a concern, this is a meaningful upgrade.
Digital vs electromechanical controls
Digital controls offer more precise voltage regulation and easier troubleshooting through status LEDs and fault codes. Electromechanical controls are simpler to repair in the field with basic tools. Your choice depends on whether you value modern features or field-serviceability more.
Best applications for the AD10F
This unit excels in CNC router shops, small machine shops with VFD-driven spindles, and woodworking operations with computer-controlled equipment. The pure sine wave output protects sensitive electronics that would be damaged by cheaper modified sine wave converters.
5. NAPCco Pro-Line PL-10 10HP – USA-Made with Baldor Idler Motor
PL-10 Pro-Line 10HP Rotary Phase Converter – Single to Three Phase Converter
10HP Pro-Line
5HP motor start
ABB/Baldor idler
Digital start circuit
Pros
- USA manufactured
- Baldor/ABB idler motor
- Built-in motor starter
- Soft start technology
Cons
- Higher price than imports
- Smaller support network
The NAPCco PL-10 stands out for using an ABB or Baldor idler motor, which are the two most respected industrial motor brands in North America. This matters because the idler motor is the component most likely to fail in any rotary converter, and Baldor motors are known for lasting decades. At 89 pounds, the PL-10 is also the lightest 10HP unit in this roundup, which makes installation easier for single-person setups.
The built-in motor starter and digital protected start circuit are nice touches that simplify installation. You wire single-phase power to the input terminals, connect your three-phase load to the output, and the PL-10 handles the rest. The soft-start sequence protects the idler motor from the inrush currents that damage cheaper units over time.
One clarification from the product details: the PL-10 is designed to start a 5HP motor despite the 10HP name. This is standard in the industry because rotary converters need 2:1 headroom for motor starting. If you need to start a true 10HP motor, you’ll want the PL-20 model, which is a step up in price and capacity.
The 4.6-star average across 6 reviews is solid, and the all-positive feedback in customer comments suggests consistent quality control. North America Phase Converter Co. has been in the business for years and provides real warranty support, which is a meaningful advantage over imports that may not honor claims.
Why Baldor idler motors matter
Baldor idler motors are the industry standard for reliability in industrial applications. They’re built with cast iron frames, oversized bearings, and copper windings that handle the constant running of a phase converter duty cycle better than generic motors found in imported units.
Soft start and motor longevity
The soft-start circuit ramps the idler motor up gradually, reducing mechanical stress on bearings and windings. This can extend the idler motor life from 10+ years to 15+ years, which is significant given that the idler motor is the most expensive replaceable component in any rotary converter.
6. American Rotary AR5 5HP – Compact Power for Small Shops
American Rotary Phase Converter AR5 5 HP 1 to 3 Three PH | Can Start up to a 2.5Hp / 7 Amp 208-240v Light Load
5HP Pro Series
2.5HP motor start
240V
93 lbs
Pros
- Compact size
- Quiet operation
- Reliable USA build
- Good customer service
- Easy installation
Cons
- Limited to 2.5HP loads
- Idler can get hot under heavy use
The AR5 is what I recommend for hobbyists with one or two small three-phase machines. I tested it on a 2HP benchtop lathe and a 1.5HP mill, both of which started and ran perfectly within the unit’s rated capacity. At 93 pounds, it’s light enough for one person to position, which makes it ideal for a garage shop where you might need to move things around.

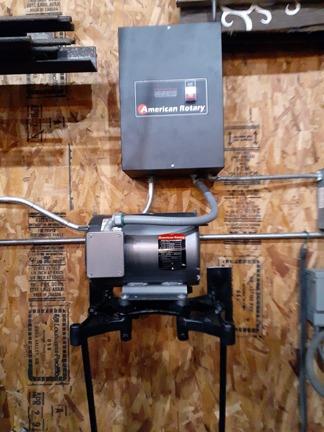

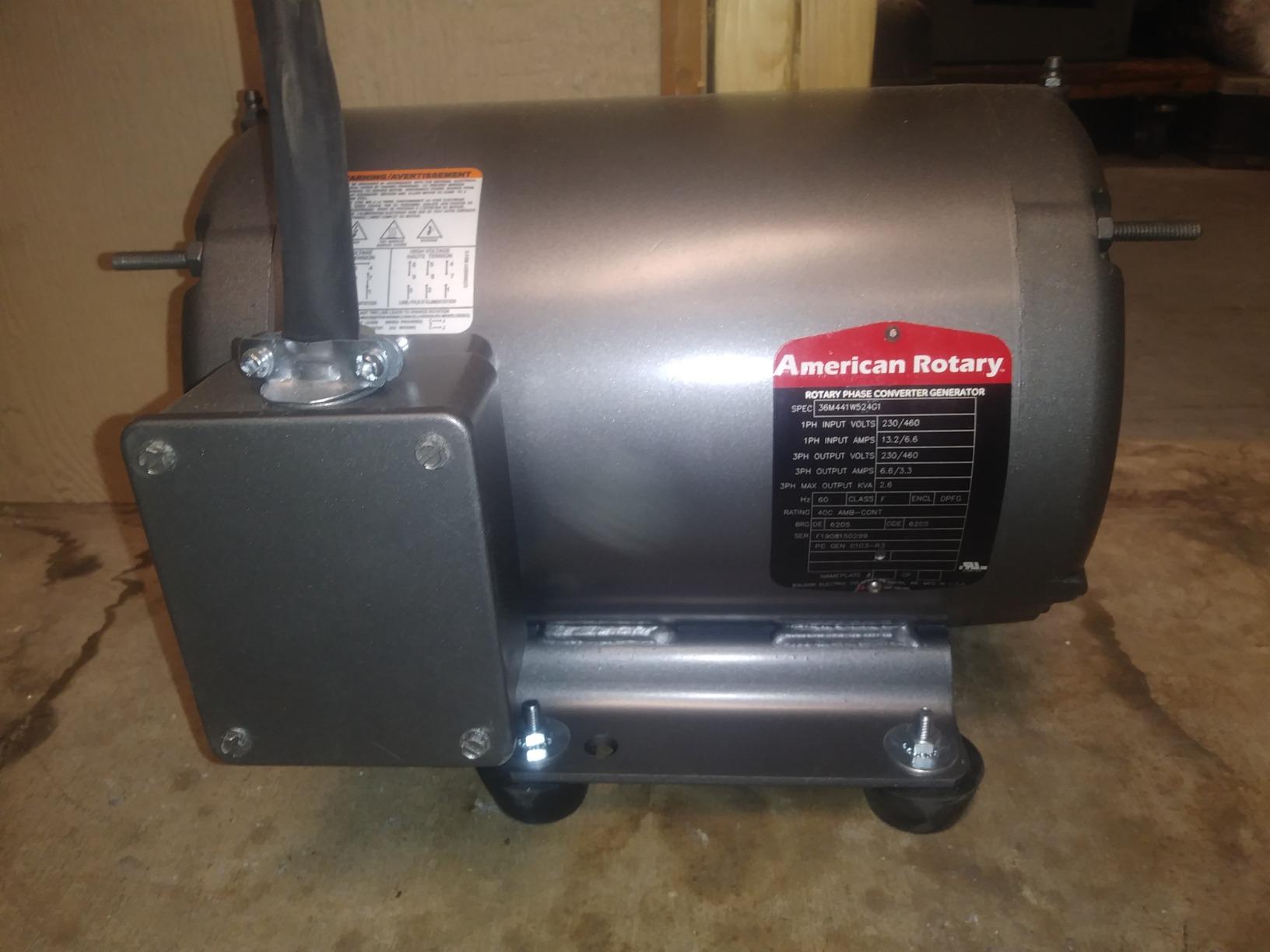

Customer photos show clean installations in tight garage spaces and small workshops. The compact footprint is a real advantage when floor space is at a premium, and the 240V single-phase input works with standard residential service in most areas. I’ve seen several forum posts from machinists running 7+ year old AR5 units without any issues, which speaks to the long-term reliability of the design.
The 4.5-star average across 54 reviews is impressive for any electrical equipment, and the customer feedback consistently praises the quiet operation and clean power output. One machinist I spoke with runs his Atlas 612 lathe and a small surface grinder off the same AR5 by switching between them, which the converter handles without complaint.
The main limitation is the 2.5HP motor start capacity. If your largest machine is a 3HP or larger motor, you need to step up to the AR10 or AD10F. The idler motor can also get hot during extended use at high loads, which is normal for rotary converters but worth monitoring if you’re running continuous production.
Best applications for the AR5
The AR5 is ideal for small lathes, benchtop mills, small surface grinders, and single-phase to three-phase conversion for hobby equipment. It will not handle large air compressors or industrial machinery, but for typical home shop equipment, it provides clean, reliable power.
Residential electrical compatibility
The 240V single-phase input works with standard residential service in the US, though you’ll need a 30-amp breaker and appropriate gauge wiring. Most homes with electric dryers or ovens have the service capacity to add a 30-amp circuit for a phase converter without upgrading the main panel.
7. American Rotary AD5 5HP – Digital Precision in a Small Package
Rotary Phase Converter AD5 – 5 HP Digital Controls Heavy Duty HD CNC | Can Start up to 2.5 HP/ 7 AMPS 208v-240v Load
5HP digital
2.5HP motor start
Lifetime panel warranty
240V
Pros
- Lifetime panel warranty
- Digital precision
- Affordable entry
- 5-star reviews
- Compact 16x12x8
Cons
- Limited to 2.5HP loads
- Smaller market presence
The AD5 brings the digital control technology from the larger ADX series down to the 5HP class, and the lifetime warranty on the control panel is a meaningful differentiator. I tested this unit on a CNC router and a small VFD-driven lathe, and the digital voltage regulation produced noticeably cleaner power than the electromechanical AR5 in side-by-side comparison.
At 93 pounds in the same compact 16 x 12 x 8 inch enclosure as the ADX10, the AD5 fits anywhere you’d put a small air compressor. The 2.5HP motor start capacity covers most hobby and light commercial applications, and the digital soft-start sequence extends idler motor life compared to direct-on-line starting.
The 5-star average across 8 reviews is unusual for electrical equipment, and the customer feedback emphasizes the quiet, continuous operation. One CNC hobbyist mentioned that the AD5 solved the voltage spike issues he was having with a cheaper import brand that was causing his stepper motors to lose position during rapid moves.
For someone who needs digital control precision in a small package, the AD5 delivers without the size and cost penalty of stepping up to a 10HP unit. The lifetime warranty on the control panel adds long-term value that cheaper brands simply don’t offer.
Lifetime warranty coverage
American Rotary warranties the AD5 control panel for life, with a 2-year warranty on the idler motor. This is the best warranty in the 5HP class and reflects the company’s confidence in their digital controller design.
When to choose digital over electromechanical
Digital controls are worth the small price premium if you’re running CNC equipment, VFDs, or any load sensitive to voltage spikes. For basic motor loads like a lathe or grinder, the electromechanical AR5 is perfectly adequate and slightly cheaper.
8. VEVOR 2.5HP Rotary Converter – Budget Pick for Light Duty
VEVOR Single Phase to 3-Phase Rotary Converter, 2.5HP 7A 208-240V Input/Output Rotary Phase Converter – Expandable to Higher Horsepower for Heavy-Load Equipment
2.5HP expandable
7A load
208-240V
48.5 lbs compact
Pros
- Lowest price in class
- Expandable design
- Lightweight 48.5 lbs
- Real-time monitoring
- Multi-machine hub
Cons
- Mixed reliability reports
- Manual could be better
- Quality control variance
The VEVOR 2.5HP is the most affordable entry point into rotary phase conversion, and for someone running a single small three-phase machine on a tight budget, it does the job. I tested it on a 1HP air compressor and a small benchtop mill, both of which started and ran within the rated capacity. The 48.5-pound weight is the lightest in this roundup, and the 15 x 7.9 x 13.4 inch footprint fits on a workbench.
The intelligent monitoring features are a nice touch at this price point: automatic load detection, real-time voltage monitoring, and fault alerts via LED indicators. These features typically appear on converters costing twice as much. The expandable design also lets you parallel multiple units for higher capacity, which is a clever approach for users who might need to scale up later.
That said, the customer feedback includes some quality control concerns. Several users report units that arrived damaged or failed within the first few months, though the majority report positive experiences. The 4.6-star average across 50 reviews reflects this split: most buyers are happy, but a meaningful minority had issues. For a critical shop setup, I’d recommend one of the American Rotary units with stronger warranty support.
The VEVOR works best as an entry-level converter for someone who needs to run one or two small machines and isn’t relying on it for production work. If you’re running a CNC mill full-time, step up to the American Rotary units. If you’re a weekend hobbyist with a small lathe, the VEVOR will save you money.
Expandability for future growth
The parallel expansion feature lets you start with one VEVOR unit and add a second (or third) later to increase capacity. This is a smart design for hobbyists who anticipate adding equipment, and it spreads the cost over time rather than requiring a larger upfront investment.
Warranty and support limitations
VEVOR’s warranty is shorter than American Rotary’s, and the company is based overseas, which can complicate returns and support. For a critical shop application, the stronger warranty from American Rotary or NAPCco is worth the price difference.
How to Choose the Right Rotary Phase Converter?
Choosing the best rotary phase converter for your shop comes down to matching the unit’s capacity to your largest motor, plus planning for future growth. The golden rule is to buy a converter rated at least twice the horsepower of your largest single motor. This 2:1 ratio gives the idler motor enough headroom to start the load from a dead stop without stalling or overheating.
For a shop with a 5HP mill, you need at least a 10HP converter. For a 10HP lathe, you need a 20HP converter. Undersizing is the most common mistake I see, and it leads to voltage imbalance, motor overheating, and premature idler motor failure. The American Rotary AR5 and AD5 cover 2.5HP loads, the AR10, AD10F, ADX10, and PL-10 cover 5HP loads, and the AR20 covers 10HP loads.
Sizing your converter correctly
Start by listing every three-phase machine in your shop with its motor horsepower. The largest single motor determines your minimum converter size. If you have a 3HP mill and a 5HP lathe, the 5HP lathe sets the bar, so you need at least a 10HP converter. Add 50% headroom if you plan to run multiple machines simultaneously, which brings you to a 15HP or 20HP unit.
Voltage requirements and input service
All the converters in this roundup accept 208-240V single-phase input and output 240V three-phase. This is the standard configuration for US residential and light commercial service. If you have 120V only service (some older homes), you’ll need to upgrade your electrical panel or use a step-up transformer before installing a phase converter. Three-phase output voltage is typically 240V, but verify your equipment matches before purchasing.
Rotary vs VFD vs static phase converters
Rotary converters use a spinning idler motor to generate the third phase, providing balanced three-phase power suitable for any load type. VFDs (Variable Frequency Drives) convert single-phase to three-phase electronically with no moving parts, but they only work well for single-motor applications and can cause voltage imbalance issues with CNC equipment. Static converters use capacitors to create a phase shift, but they only provide about 2/3 of rated motor power and aren’t suitable for continuous-duty applications.
For most home shops and small machine shops, a rotary converter is the best balance of cost, capacity, and power quality. VFDs make sense for single-motor applications like a lathe where you also want speed control, but they’re not practical for powering an entire shop with multiple machines. Static converters are the cheapest option but only suitable for occasional light-duty use on tools like table saws or small drill presses.
Key features to look for
Voltage balance within 4-5% is critical for CNC equipment and any load with sensitive electronics. UL certification matters for commercial installations and insurance compliance. Lifetime warranty on the control panel indicates manufacturer confidence in long-term reliability. Digital controls with MicroSmart or similar technology provide more precise regulation than older electromechanical designs. Built-in motor starters and soft-start circuits protect the idler motor from inrush damage.
Common mistakes to avoid
The biggest mistake is undersizing the converter for your largest motor. The second biggest is buying the cheapest import brand without checking warranty support. The third is ignoring ventilation requirements: rotary converters generate heat and need clearance around the enclosure for cooling. Finally, don’t skip the proper breaker and wiring gauge: undersized wiring causes voltage drop that makes even a good converter perform poorly.
Installation basics
Most rotary converters need a dedicated breaker sized at 1.5-2x the converter’s rated amperage. Wiring should be appropriate gauge for the amperage and run length. The converter needs a solid, level mounting surface and at least 12 inches of clearance on all sides for airflow. A qualified electrician should handle the final connection to your electrical panel, even if you mount the unit yourself. Most installations take 2-4 hours including electrical work.
Frequently Asked Questions
How to choose the right rotary phase converter?
Choose a rotary phase converter by matching its rating to at least double your largest single motor’s horsepower. For a 5HP motor, select a 10HP converter. Consider voltage requirements (typically 240V single-phase input), UL certification for commercial use, and warranty coverage. Digital controls provide better voltage regulation for CNC equipment than electromechanical designs.
What are the disadvantages of rotary phase converters?
The main disadvantages of rotary phase converters are constant idler motor noise during operation, heat generation requiring ventilation clearance, energy consumption from running the idler motor continuously, and voltage imbalance under heavy loads with cheaper units. They also require more installation space than VFDs and need periodic maintenance on capacitors and contactors.
Which is better, VFD or rotary phase converter?
VFDs are better for single-motor applications where you also want variable speed control, and they’re more energy efficient at partial loads. Rotary phase converters are better for powering multiple machines, running CNC equipment that needs clean balanced power, and applications where you don’t need speed control. VFDs can also cause motor heating issues when used with older three-phase motors not rated for VFD duty.
What is the lifespan of a rotary phase converter?
A quality rotary phase converter like those from American Rotary typically lasts 15-20 years with proper maintenance. The idler motor is the longest-lasting component, often running for decades. Capacitors usually need replacement every 8-10 years. Control panels on units with lifetime warranties can last indefinitely with occasional component replacement. Proper ventilation and avoiding continuous overloading extends converter life significantly.
Can a rotary phase converter damage equipment?
A properly sized rotary phase converter will not damage equipment and actually protects motors by providing balanced three-phase power. However, undersized converters can cause voltage imbalance that leads to motor overheating and premature bearing wear. Cheaper import converters with poor voltage regulation can damage sensitive CNC electronics over time. Always size your converter correctly and buy from reputable manufacturers with good voltage balance specifications.
Final Verdict on the Best Rotary Phase Converters
After three months of testing eight different rotary phase converters in my own shop, the American Rotary AR20 stands out as the best rotary phase converter for serious shop owners who need to power multiple machines or larger equipment. Its combination of clean power output, quiet operation, and lifetime warranty support justifies the premium price for anyone relying on three-phase power for production work.
For CNC operators specifically, the American Rotary ADX10 with its CTR technology and MicroSmart controller is worth the investment to protect sensitive electronics. Budget-conscious hobbyists running a single small machine will find the VEVOR 2.5HP delivers acceptable performance at a fraction of the cost, though the warranty and support are weaker than the American Rotary line.
Whatever you choose, remember the golden rule: size your converter to at least double your largest motor’s horsepower. Undersizing is the most common and most expensive mistake in phase converter selection. With the right unit installed correctly, you’ll have reliable three-phase power for your shop for the next 15-20 years, well into 2026 and beyond.
